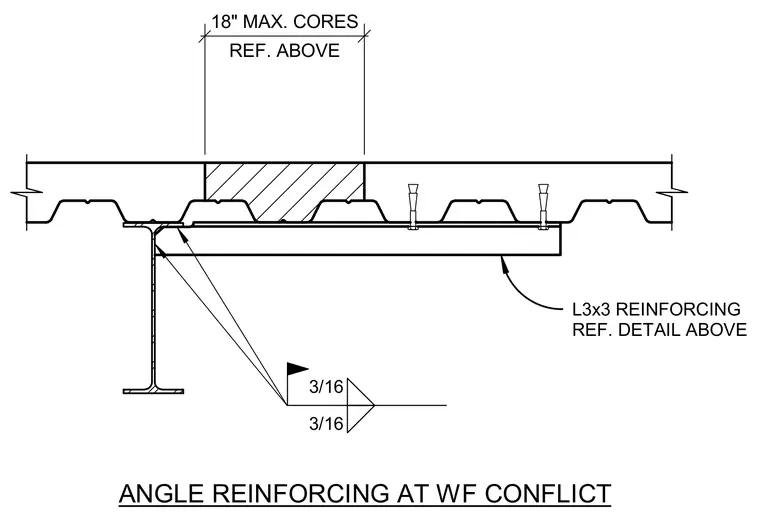

An L3x3 structural steel angle provides reinforcing at a wide flange beam conflict. The angle is welded to the wide flange beam with 3/16 inch fillet welds. Metal deck spans across the beam assembly with concrete fill in cores spaced at a maximum of 18 inches.
L3x3 REINFORCING REF. DETAIL ABOVE ANGLE REINFORCING AT WF CONFLICT REF. ABOVE 18" MAX. CORES 3/16 3/16
