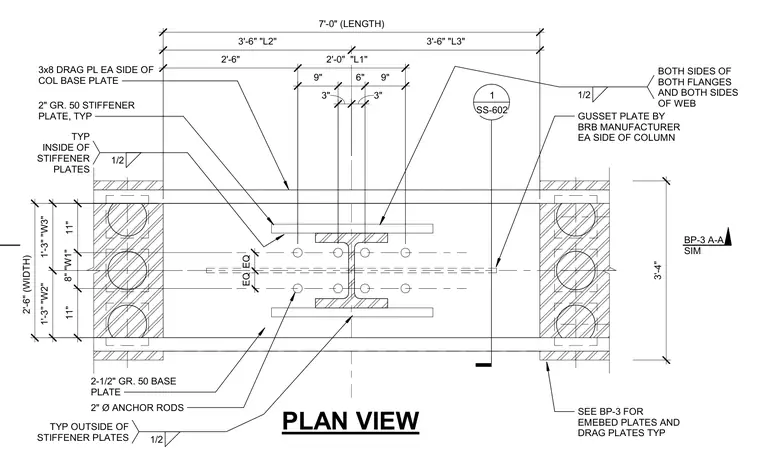

This structural detail shows a steel column base assembly featuring a 2-1/2-inch Grade 50 base plate measuring 2 feet 6 inches by 7 feet 0 inches, secured by two-inch diameter anchor rods. Two-inch Grade 50 stiffener plates are welded to the base plate on both the inside and outside with half-inch fillet welds, applied to both sides of both flanges and the web. Gusset plates provided by the buckling-restrained brace manufacturer are positioned on each side of the column and welded with half-inch fillet welds. Three-by-eight-inch drag plates are located on each side of the column base plate, referencing detail BP-3 for embed plates and additional drag plates.
2" GR. 50 STIFFENER PLATE, TYP 2-1/2" GR. 50 BASE PLATE 1/2 TYP INSIDE OF STIFFENER PLATES 1/2 BOTH SIDES OF BOTH FLANGES AND BOTH SIDES OF WEB 1/2 TYP OUTSIDE OF STIFFENER PLATES 11" 8" "W1" 11" 3'-6" "L2" 3'-6" "L3" 1'-3" "W3" 1'-3" "W2" 2'-6" (WIDTH) 7'-0" (LENGTH) PLAN VIEW 3'-4" 3x8 DRAG PL EA SIDE OF COL BASE PLATE 1 SS-602 2" Ø ANCHOR RODS GUSSET PLATE BY BRB MANUFACTURER EA SIDE OF COLUMN 9" 6" 9" 3" 3" 2'-0" "L1" 2'-6" EQ EQ SEE BP-3 FOR EMEBED PLATES AND DRAG PLATES TYP BP-3 A-A SIM
