A circular beam penetration with reinforcing web plates attached to the steel beam web. The circular opening of diameter D is centered on the beam web, requiring half-inch or one-eighth inch web plates sized per schedule top and bottom. Dimensional constraints require a minimum clear distance of d over six from the flange to the opening edge, with web plate extensions of D over two plus one inch beyond the opening diameter horizontally. Fillet welds secure the web plates typically top and bottom. Clearances from the flange fillet comply with AISC standards.

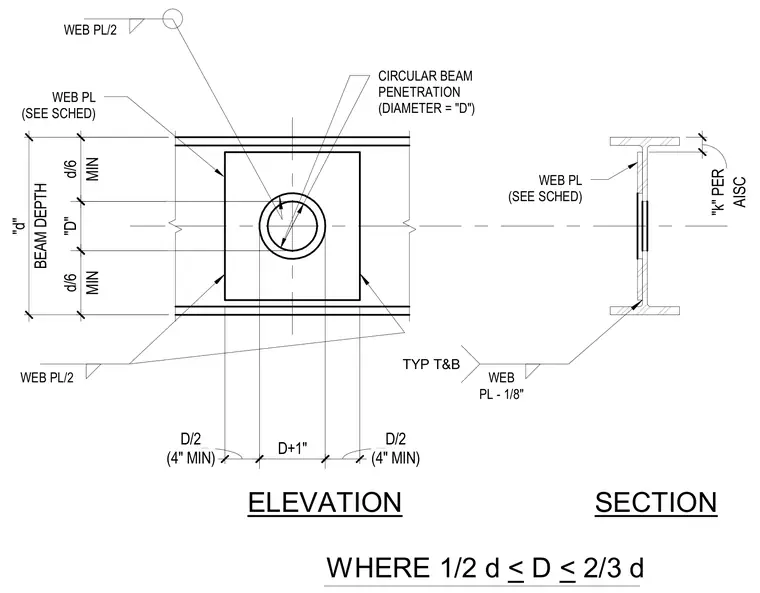

WEB PL - 1/8" WEB PL/2 WEB PL/2 WHERE 1/2 d < D < 2/3 d ELEVATION SECTION WEB PL (SEE SCHED) WEB PL (SEE SCHED) BEAM DEPTH "d" MIN d/6 MIN d/6 "D" CIRCULAR BEAM PENETRATION (DIAMETER = "D") TYP T&B (4" MIN) D/2 D+1" (4" MIN) D/2 AISC "k" PER
