Structural · S-QBQZQ

HSS Beam Connection and CMU Wall Foundation Details

Materials

Concrete Steel Masonry / CMU

Elements

Beams Walls Floors / Slabs Arches Anchors / Embeds Connections / Plates Reinforcing Roof / Floor Openings

Connections

HSS Connection Welded Connection Rebar Splice / Development

About this detail

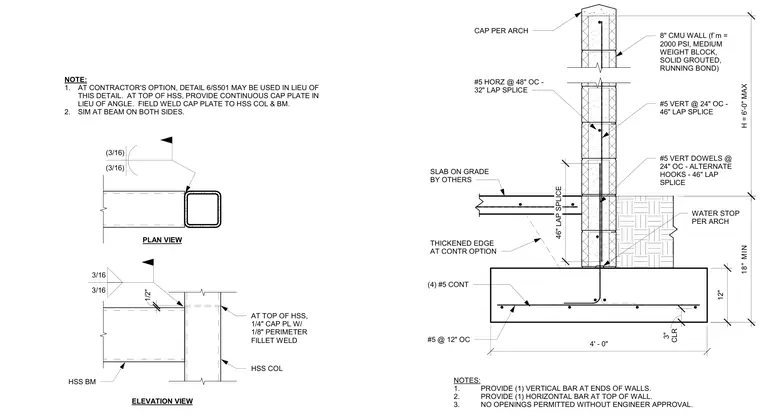

Two typical structural conditions comprise an HSS beam to HSS column connection and a reinforced CMU wall on a concrete footing. The steel connection features a one-quarter-inch thick cap plate field-welded to the top of the HSS column and beam with an eighth-inch perimeter fillet weld, with similar conditions at beams on both sides. The masonry detail shows an eight-inch solid-grouted concrete masonry unit wall with number five vertical reinforcing bars at twenty-four inches on center with forty-six-inch lap splices, supported by a concrete footing with number five continuous bars and number five bars at twelve inches on center. The footing includes a thickened edge at the contractor's option and a water stop per architectural requirements. Additional notes specify providing one vertical bar at wall ends, one horizontal bar at the top of the wall, and prohibiting openings without engineer approval.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
