Structural · S-QBPSC

Concrete Stem Wall Foundation at Storefront and Precast Panel

Materials

Elements

Walls Windows Storefronts Floors / Slabs Foundations / Footings Stem Walls Arches

About this detail

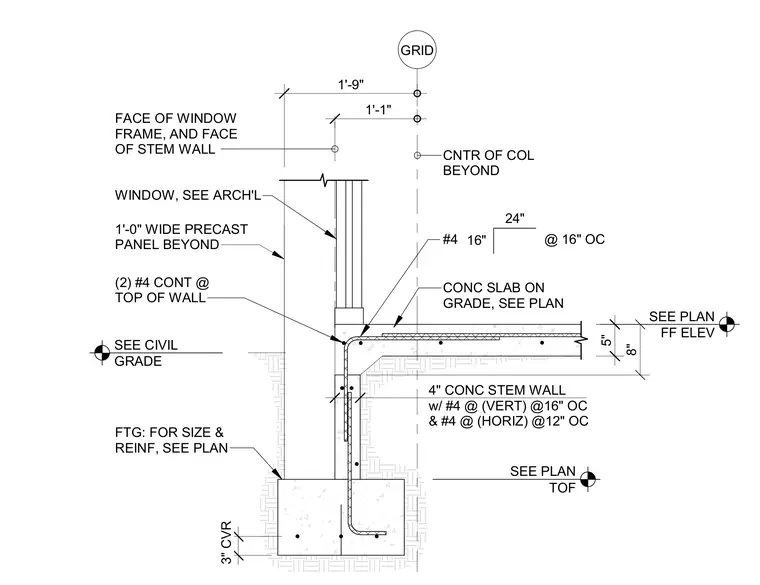

A concrete stem wall bears on a continuous concrete footing with sizing and reinforcement per plan, maintaining three inches of concrete cover. The stem wall consists of four-inch concrete reinforced with vertical number four bars at sixteen inches on center and horizontal number four bars at twelve inches on center, topped with two continuous number four reinforcing bars. A concrete slab on grade ties into the stem wall assembly. A storefront window aligns with the face of the stem wall, while a one-foot-wide precast panel sits beyond.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
