Dunnage Platform Screenwall

Materials

Steel

Elements

Columns Beams Arches Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

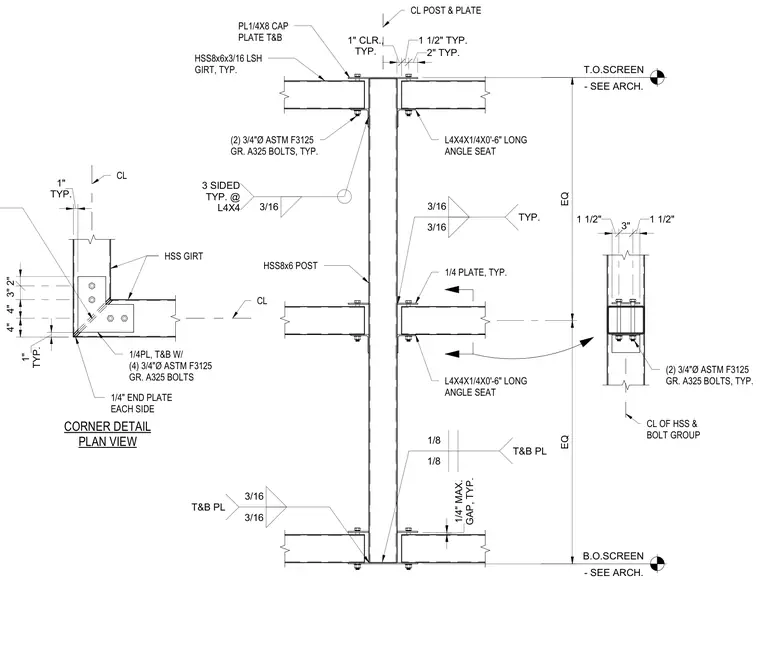

A structural steel dunnage platform screenwall assembly features an HSS8x6 vertical post and intersecting HSS8x6x3/16 girts. The girts bear on typical L4x4x1/4 angle seats that are six inches long and welded to the post with three-sixteenths inch fillet welds. Connection plates include top and bottom quarter-inch cap plates and end plates secured with three-quarter-inch diameter ASTM F3125 Grade A325 bolts. A corner plan view detail features a quarter-inch end plate on each side fastened with four three-quarter-inch bolts, maintaining a one-inch typical clearance and a maximum quarter-inch gap at joints. Fillet weld sizes are specified at three-sixteenths and one-eighth inch throughout the connection group.
