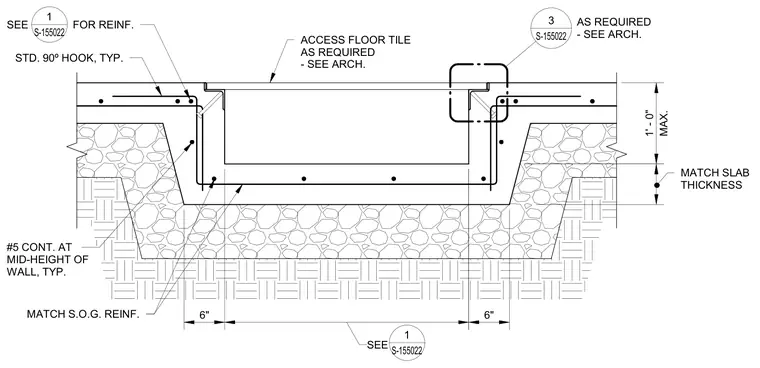

A recessed concrete floor box opening is formed within a slab-on-grade, featuring a maximum depth of one foot with a bottom thickness matching the slab. Continuous number five reinforcing bars with standard ninety-degree hooks are placed at the wall mid-height and tied into the matching slab reinforcement. Access floor tiles are integrated at the top surface as required per architectural specifications.
1 S-155022 S-155022 3 AS REQUIRED - SEE ARCH. ACCESS FLOOR TILE AS REQUIRED - SEE ARCH. STD. 90º HOOK, TYP. #5 CONT. AT MID-HEIGHT OF WALL, TYP. MATCH S.O.G. REINF. MAX. 1' - 0" 6" SEE 6" MATCH SLAB THICKNESS SEE FOR REINF. 1 S-155022
