Structural · S-QBAXP

Metal Stud Hanging Support at Concrete and Metal Deck

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Decks Anchors / Embeds

Connections

Deck Attachment Embed Plate

About this detail

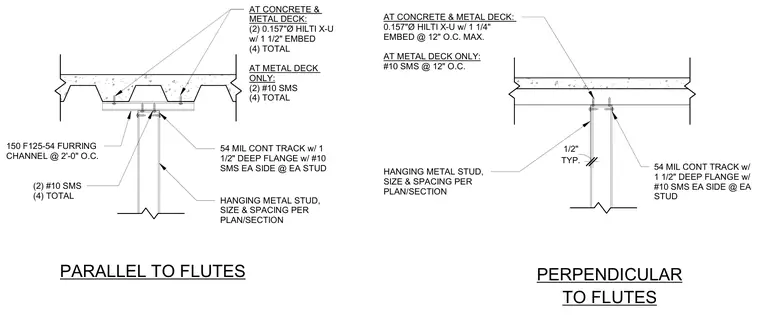

Hanging metal stud framing anchors to an overhead concrete and metal deck system, arranged both parallel and perpendicular to the flutes. A continuous fifty-four mil track with one and one-half inch deep flanges secures to the framing using number ten self-tapping metal screws on each side of each stud. When anchored to concrete and metal deck, the assembly utilizes two zero point one five seven inch diameter Hilti X-U powder-actuated fasteners with one and one-half inch embedment, totaling four fasteners, alongside a one hundred fifty F one twenty-five dash fifty-four furring channel spaced at two feet on center for parallel orientation. For metal deck only applications, two number ten self-tapping metal screws are used, totaling four. Alternatively, fasteners are specified at twelve inches on center maximum for concrete and metal decks or twelve inches on center for metal deck only.
