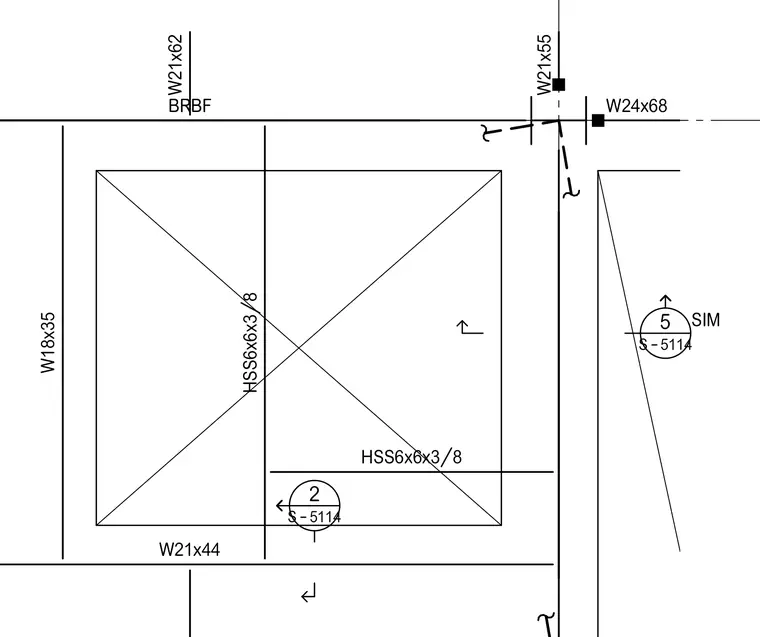

A buckling-restrained braced frame assembly utilizes HSS6x6x3/8 structural steel tubes framing into wide-flange members including W21x44, W18x35, W21x62, W21x55, and W24x68 shapes. Reference callouts point to related details on sheet S-5114 for similar connections. The configuration provides lateral force resistance within the structural steel frame.
W21x44 W18x35 W21x62 W21x55 W24x68 BRBF HSS6x6x3/8 HSS6x6x3/8 5 S-5114 SIM 2 S-5114
