Structural · S-QB9MK

Perimeter Foundation Detail

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Beams Walls Floors / Slabs Foundations / Footings Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection Embed Plate

About this detail

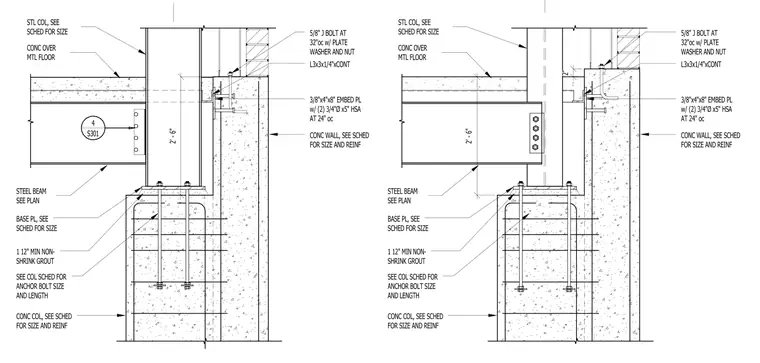

A steel column bears on a base plate set over one and one-half inch minimum non-shrink grout on a concrete column and footing, anchored by anchor bolts sized per the column schedule. A steel beam connects to the column web via a bolted shear tab. The adjacent concrete wall ties into the assembly using a continuous three-by-three by one-quarter inch angle secured with five-eighths inch J-bolts at thirty-two inches on center with plate washers and nuts, along with three-eighths by four by eight-inch embed plates with two three-quarters inch diameter by five-inch heavy stud anchors at twenty-four inches on center. Concrete over metal floor deck forms the elevated slab level.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
