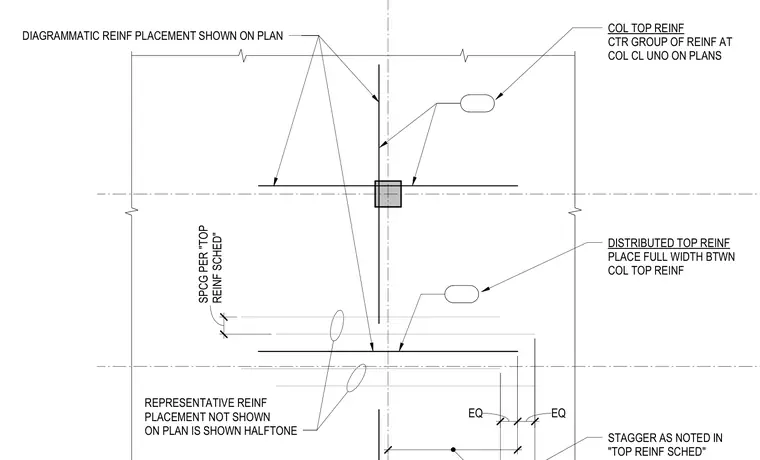

Column top reinforcement is centered as a group of reinforcement at the column centerline unless noted otherwise on plans. Distributed top reinforcement is placed across the full width between column top reinforcement groups. Spacing conforms to the top reinforcement schedule with staggering as noted. Representative reinforcement placement not shown on the plan is shown in halftone.
STAGGER AS NOTED IN "TOP REINF SCHED" DISTRIBUTED TOP REINF PLACE FULL WIDTH BTWN COL TOP REINF COL TOP REINF CTR GROUP OF REINF AT COL CL UNO ON PLANS EQ EQ 12" DIAGRAMMATIC REINF PLACEMENT SHOWN ON PLAN 90" SPCG PER "TOP REINF SCHED" REPRESENTATIVE REINF PLACEMENT NOT SHOWN ON PLAN IS SHOWN HALFTONE
