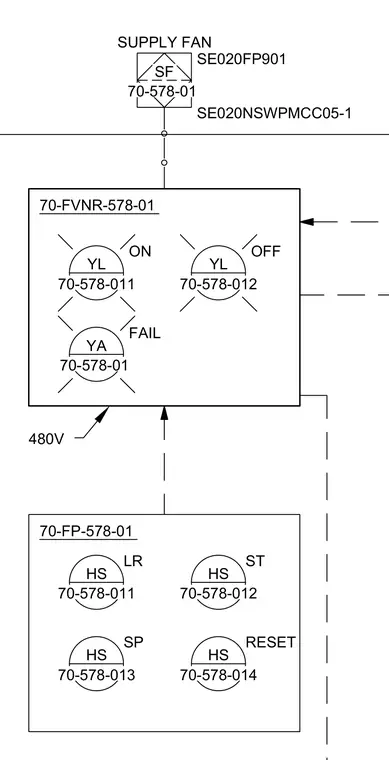

A supply fan operating at four hundred eighty volts connects through starter unit seventy dash FVNR dash five seven eight dash zero one and control station seventy dash FP dash five seven eight dash zero one. The starter panel incorporates yellow ON and OFF indicator lights along with a yellow fail alarm light. The control station includes four hand switches providing local, stop, start, and reset functions.
HS 70-578-011 LR HS 70-578-012 ST HS 70-578-013 SP HS 70-578-014 RESET )915 480V )3 SF SUPPLY FAN SE020NSWPMCC05-1 SE020FP901 YL 70-578-012 OFF YA FAIL YL 70-578-011 ON
