This structural steel detail shows a column framing perpendicular to a continuous beam member, featuring a three-quarter-inch thick bearing plate sized to the column flange width plus one inch by the column depth plus one inch. The connection is secured with four three-quarter-inch diameter bolts arranged at the beam gauge. A column cap plate matches the bearing plate size, and partial-height three-eighths-inch stiffener plates aligned with the column web are welded to the beam web with typical quarter-inch fillets on both sides. A plan section view confirms the alignment and edge clearances of the bolted connection.

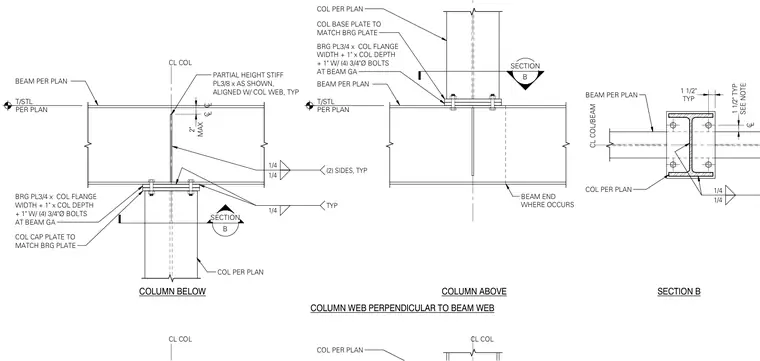

COL PER PLAN COLUMN BELOW CL COL BEAM PER PLAN T/STL PER PLAN BRG PL3/4 x COL FLANGE WIDTH + 1" x COL DEPTH + 1" W/ (4) 3/4"Ø BOLTS AT BEAM GA COL CAP PLATE TO MATCH BRG PLATE PARTIAL HEIGHT STIFF PL3/8 x AS SHOWN, ALIGNED W/ COL WEB, TYP 1/4 1/4 (2) SIDES, TYP 1/4 TYP B SECTION COL PER PLAN COLUMN ABOVE BEAM PER PLAN T/STL PER PLAN BRG PL3/4 x COL FLANGE WIDTH + 1" x COL DEPTH + 1" W/ (4) 3/4"Ø BOLTS AT BEAM GA COL BASE PLATE TO MATCH BRG PLATE B SECTION BEAM END WHERE OCCURS CL COL COL PER PLAN CL COL C L C L MAX 2" TYP 1 1/2" C L SEE NOTE 1 1/2" TYP BEAM PER PLAN COL PER PLAN 1/4 1/4 CL COL/BEAM SECTION B COLUMN WEB PERPENDICULAR TO BEAM WEB
