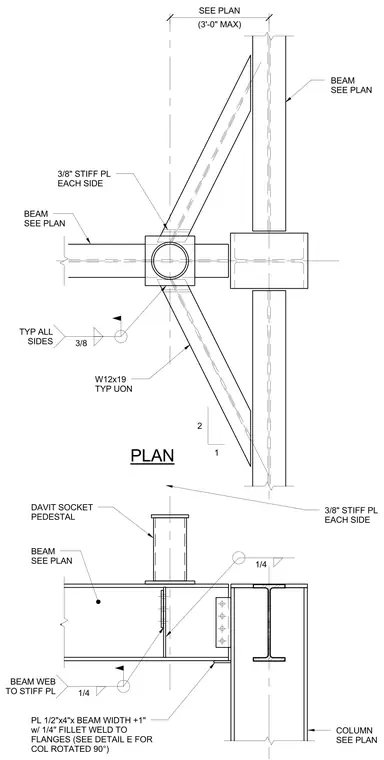

A structural support assembly consists of framing beams, a column, and a davit socket pedestal. The connection incorporates a 1/2" x 4" plate sized to the beam width plus 1", secured with 1/4" fillet welds to the flanges. 3/8" stiffener plates are welded to each side of the column web using 1/4" fillet welds, with 3/8" welds specified typically on all sides. W12x19 members are utilized typically unless otherwise noted.
PLAN PL 1/2"x4"x BEAM WIDTH +1" w/ 1/4" FILLET WELD TO FLANGES (SEE DETAIL E FOR COL ROTATED 90°) BEAM SEE PLAN DAVIT SOCKET PEDESTAL 3/8" STIFF PL EACH SIDE COLUMN SEE PLAN W12x19 TYP UON BEAM SEE PLAN 3/8" STIFF PL EACH SIDE 2 1 BEAM SEE PLAN 1/4 1/4 BEAM WEB TO STIFF PL (3'-0" MAX) SEE PLAN 3/8 TYP ALL SIDES
