Concrete Over Metal

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Decks Arches Bracing

Connections

Bracing Connection

About this detail

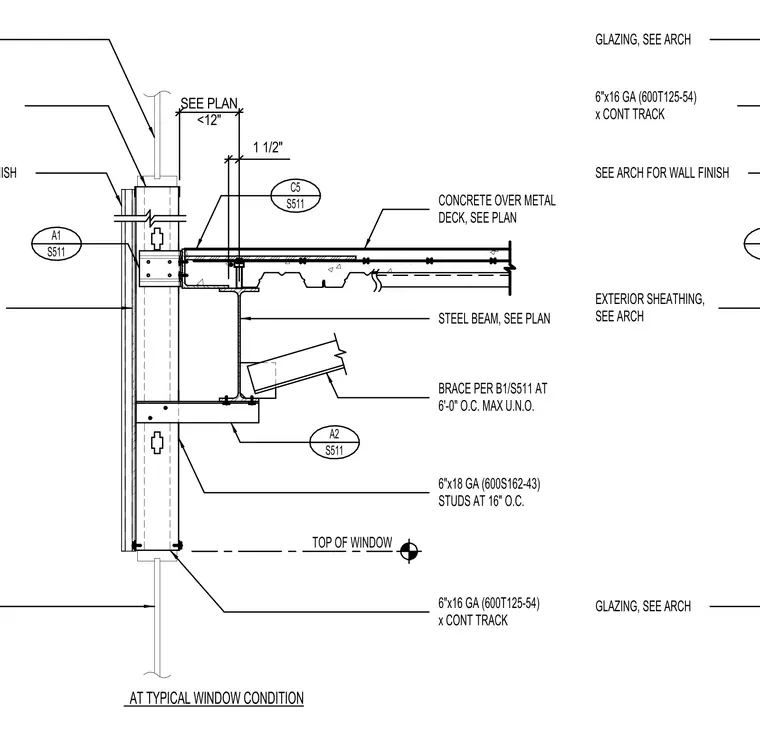

A concrete over metal deck floor system frames into a structural steel beam, with an attached diagonal brace spaced at six feet on center maximum unless noted otherwise. The exterior wall construction features six-inch 18 gauge studs type 600S162-43 spaced at sixteen inches on center running continuously past the floor edge. Continuous six-inch 16 gauge tracks type 600T125-54 form the top of the window frame and perimeter framing. Exterior sheathing, wall finishes, and glazing are indicated to be per architectural drawings.
