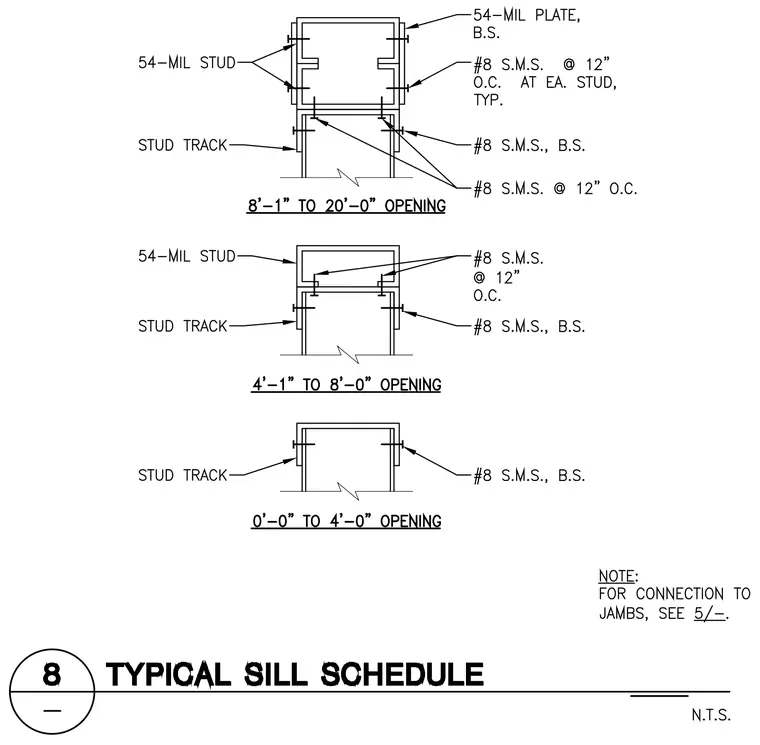

Cold-formed metal framing sill schedule detailing track and stud configurations for opening widths ranging from zero feet to twenty feet. The assembly utilizes stud tracks tied to 54-mil studs with number eight sheet metal screws spaced at twelve inches on center both sides and at each stud typically. Wider openings from eight feet one inch to twenty feet incorporate an additional 54-mil plate on both sides secured with number eight sheet metal screws. Fastener locations are specified for both sides and specific intervals depending on the structural opening size.
