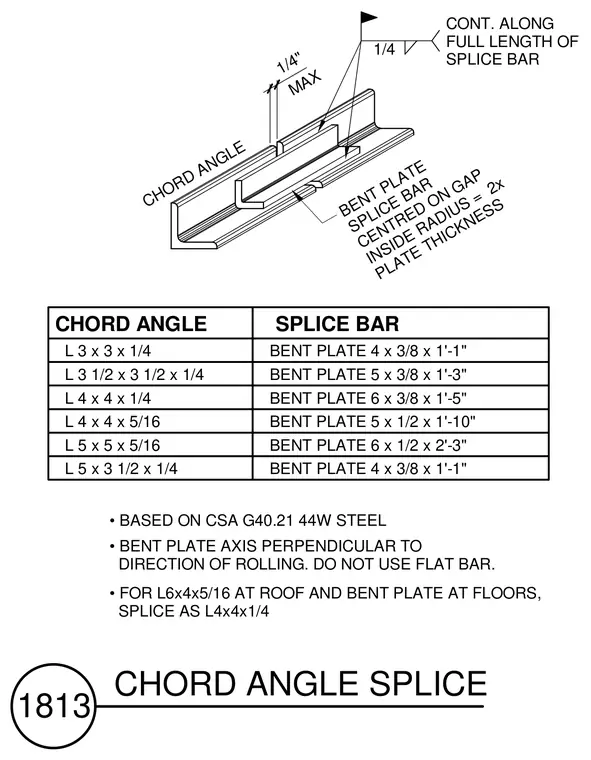

A chord angle splice connection utilizes a bent plate splice bar centred over a one-quarter-inch maximum gap. The bent plate must have its axis perpendicular to the direction of rolling and must not use flat bar, with an inside radius equal to two times the plate thickness. A one-quarter-inch continuous fillet weld runs along the full length of the splice bar as indicated by the weld symbol. The assembly is fabricated from CSA G40.21 44W steel and corresponds to a schedule of specific angle and bent plate sizes, such as L 3x3x1/4 angles paired with 4x3/8x1'-1" bent plates.
BENT PLATE 4 x 3/8 x 1'-1" L 5 x 3 1/2 x 1/4 • BASED ON CSA G40.21 44W STEEL BENT PLATE 6 x 1/2 x 2'-3" BENT PLATE 5 x 1/2 x 1'-10" BENT PLATE 4 x 3/8 x 1'-1" BENT PLATE 5 x 3/8 x 1'-3" BENT PLATE 6 x 3/8 x 1'-5" L 3 1/2 x 3 1/2 x 1/4 L 5 x 5 x 5/16 L 4 x 4 x 5/16 L 4 x 4 x 1/4 L 3 x 3 x 1/4 1/4" 1/4 SPLICE BAR CHORD ANGLE MAX CONT. ALONG FULL LENGTH OF SPLICE BAR • BENT PLATE AXIS PERPENDICULAR TO DIRECTION OF ROLLING. DO NOT USE FLAT BAR. CHORD ANGLE BENT PLATE SPLICE BAR CENTRED ON GAP INSIDE RADIUS = 2x PLATE THICKNESS • FOR L6x4x5/16 AT ROOF AND BENT PLATE AT FLOORS, SPLICE AS L4x4x1/4 1813 CHORD ANGLE SPLICE
