Three-eighths-inch stiffener plates are welded to each side of the W12x19 beam typical unless otherwise noted. A three-eighths-inch fillet weld is applied to all sides of the connection details. The supporting and supported beams are sized per the structural plan with a three-foot-zero-inch maximum dimension.

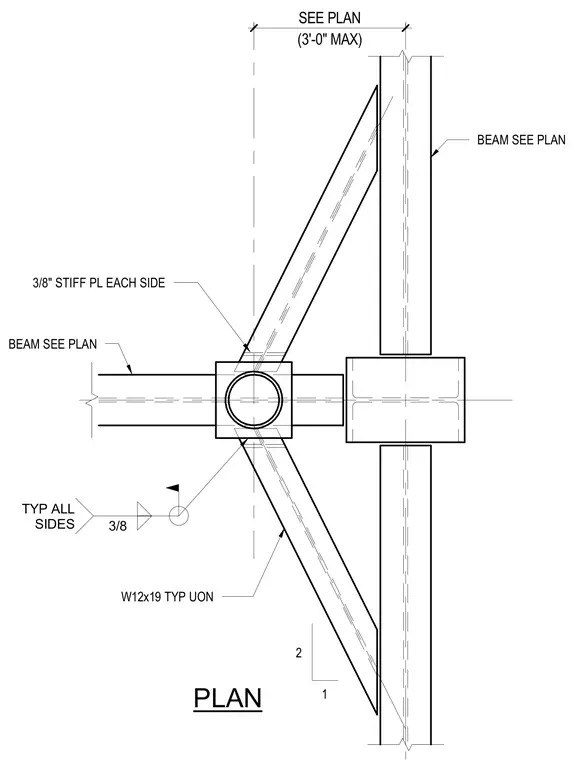

PLAN W12x19 TYP UON BEAM SEE PLAN 3/8" STIFF PL EACH SIDE 2 1 BEAM SEE PLAN (3'-0" MAX) SEE PLAN 3/8 TYP ALL SIDES
