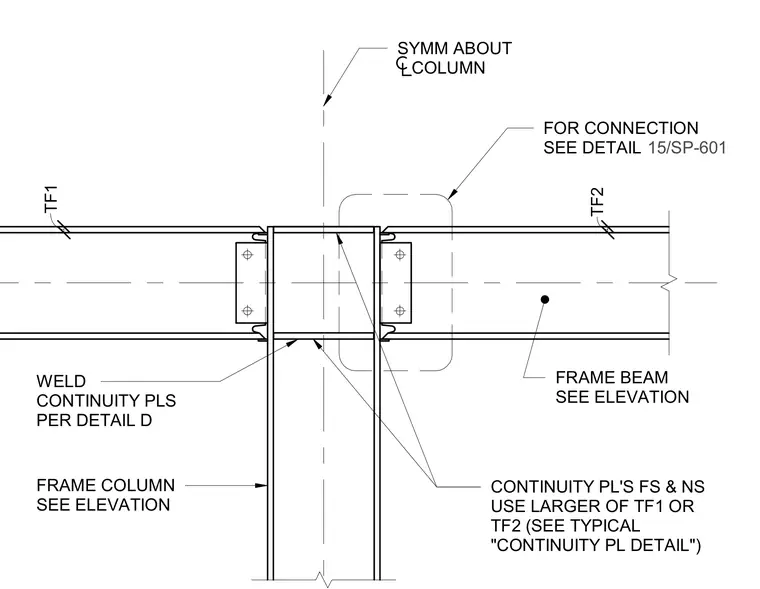

Steel frame beams frame into the column flange symmetrically about the column centerline. Continuity plates are provided on the far side and near side of the column web, sized using the larger of flange thicknesses TF1 or TF2 per typical continuity plate details. Continuity plates are welded to the column per detail specifications. The primary beam-to-column connection details are referenced separately on sheet SP-601.
FOR CONNECTION SEE DETAIL FRAME COLUMN SEE ELEVATION CONTINUITY PL'S FS & NS USE LARGER OF TF1 OR TF2 (SEE TYPICAL "CONTINUITY PL DETAIL") FRAME BEAM SEE ELEVATION SYMM ABOUT COLUMN TF2 TF1 WELD CONTINUITY PLS PER DETAIL D 15/SP-601
