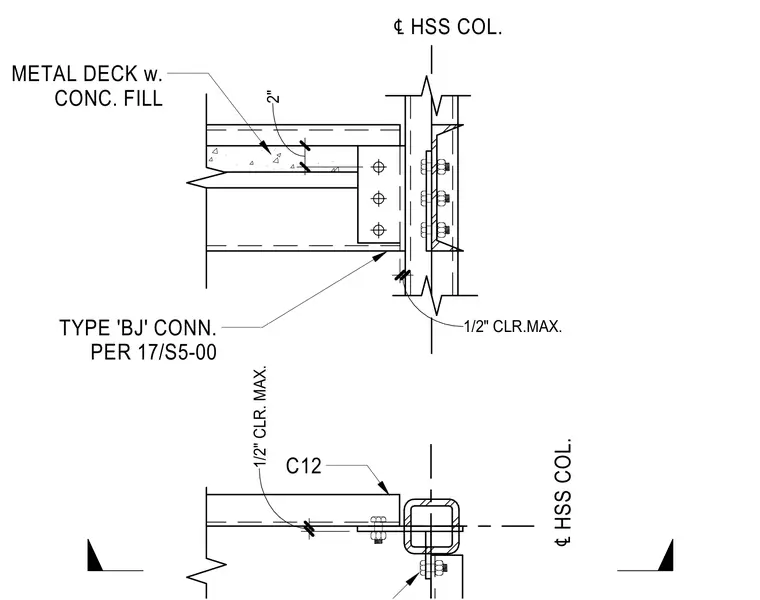

A C12 channel stair stringer frames into a hollow structural section column with a maximum one-half inch clearance. The connection utilizes a type 'BJ' detail per drawing 17/S5-00 with bolted tabs and structural steel framing. A two-inch metal deck with concrete fill bears adjacent to the framing assembly.
1/2" CLR. MAX. ℄ HSS COL. TYPE 'BJ' CONN. PER 17/S5-00 1/2" CLR.MAX. ℄ HSS COL. 2" METAL DECK w. CONC. FILL C12
