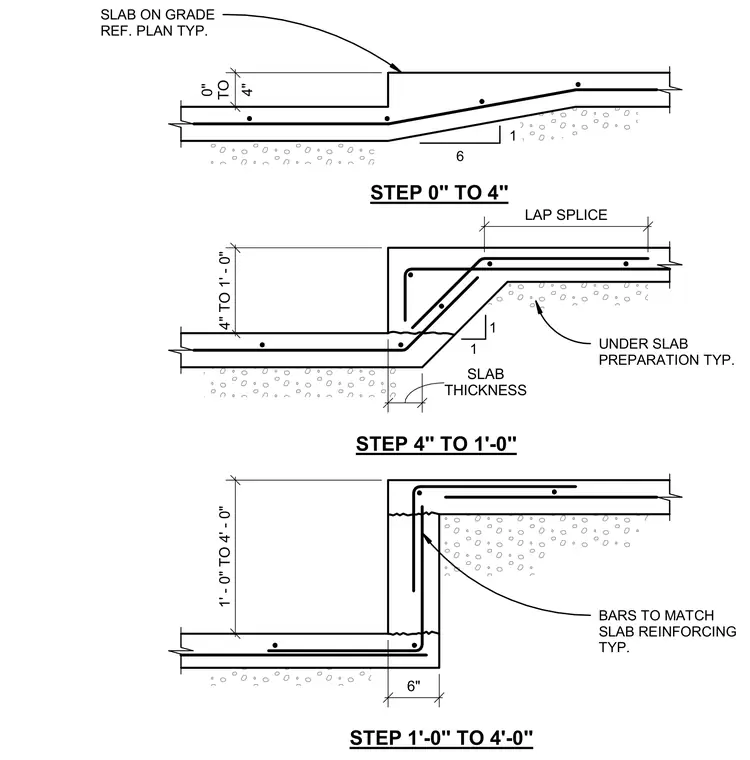

Reinforced concrete slab on grade conditions feature step-downs ranging from zero to four inches, four inches to one foot, and one foot to four feet. Top and bottom slab reinforcing bars match typical slab reinforcement and are detailed with lap splices through the transition zones. Sloped transition configurations maintain standard slopes, and under slab preparation is provided typically. Vertical steps utilize hooked rebar to maintain structural continuity across the elevation change.
1 1 6 1 BARS TO MATCH SLAB REINFORCING TYP. SLAB ON GRADE REF. PLAN TYP. STEP 1'-0'' TO 4'-0'' STEP 4'' TO 1'-0'' STEP 0'' TO 4'' 4" 0" TO 4" TO 1' - 0" SLAB THICKNESS 6" 1' - 0" TO 4' - 0" UNDER SLAB PREPARATION TYP. LAP SPLICE
