Concrete wall intersections and corners are reinforced with vertical rebar and horizontal lap splices in single and double mat configurations. Vertical reinforcement includes four number five bars typically unless noted otherwise at intersections, and two number five bars typically unless noted otherwise for single mat applications. Horizontal reinforcement features ninety degree hooks, horizontal lap splices, and optional corner bars used in lieu of bent rebar. Alternate vertical bends are provided as typical detailing requirements.

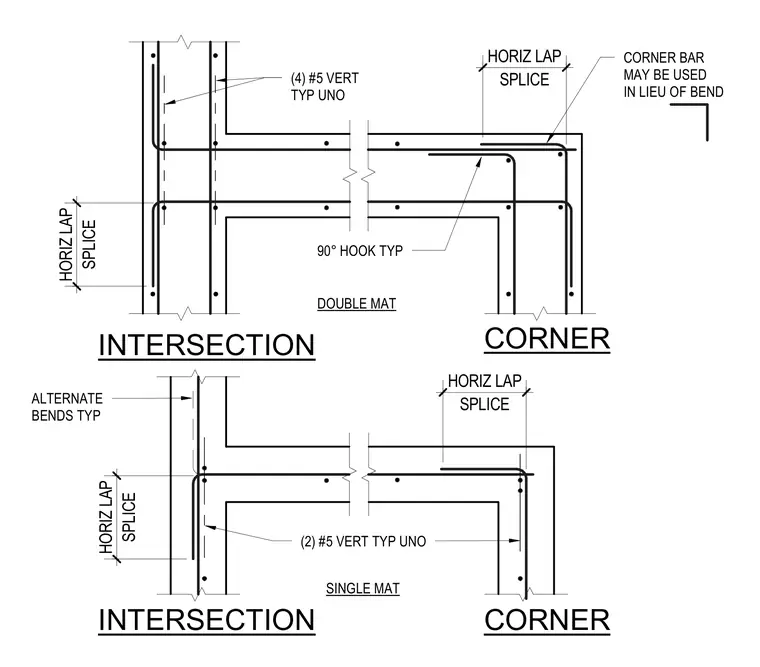

CORNER INTERSECTION INTERSECTION CORNER SINGLE MAT DOUBLE MAT (4) #5 VERT TYP UNO CORNER BAR MAY BE USED IN LIEU OF BEND 90° HOOK TYP (2) #5 VERT TYP UNO ALTERNATE BENDS TYP SPLICE HORIZ LAP SPLICE HORIZ LAP SPLICE HORIZ LAP SPLICE HORIZ LAP
