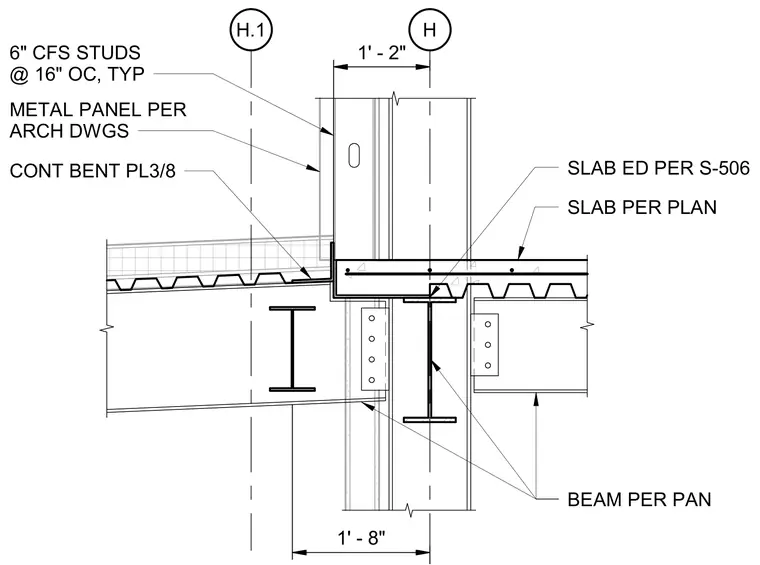

A floor slab edge connection features a continuous 3/8-inch bent plate aligning with a steel beam per plan. The assembly supports metal wall panels per architectural drawings backed by six-inch cold-formed steel studs spaced at sixteen inches on center. The structural framing includes wide-flange steel beams and concrete slab on metal deck supported at column grid lines H and H.1.
H BEAM PER PAN SLAB PER PLAN CONT BENT PL3/8 METAL PANEL PER ARCH DWGS 6" CFS STUDS @ 16" OC, TYP 1' - 2" 1' - 8" H.1 SLAB ED PER S-506
