Structural · S-Q9QVS

Dunnage Platform Screenwall at Beam

Materials

Steel Metal (misc.)

Elements

Beams Walls Railings / Guards Arches Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

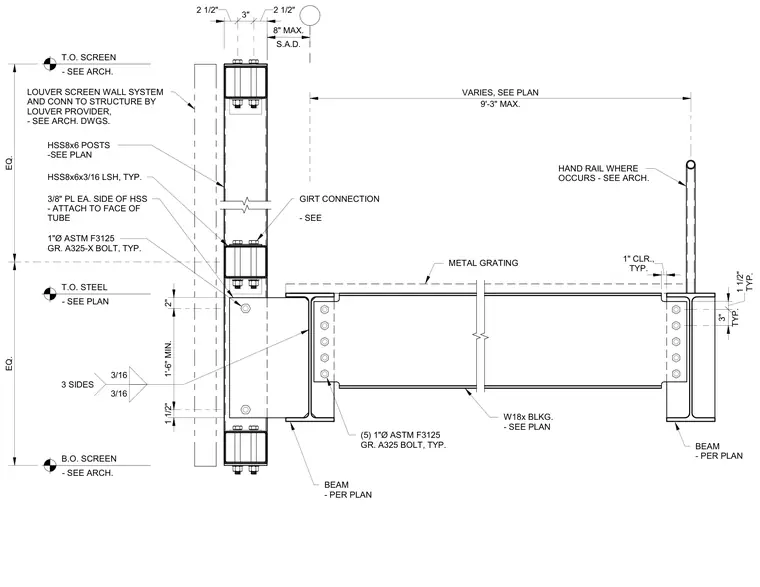

HSS8x6 posts support the louver screen wall system, attached via three-eighths-inch plates on each side of the HSS and secured with one-inch diameter ASTM F3125 Grade A325-X bolts. A W18x backing beam carries metal grating and connects to the supporting framing using five one-inch diameter ASTM F3125 Grade A325 bolts. Fillet welds sized at three-sixteenths inch are specified on three sides at the connection points per plan.
