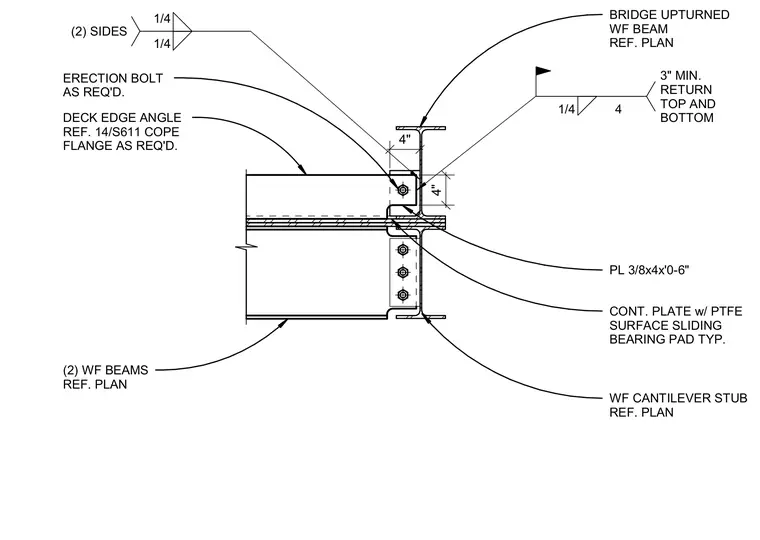

Two wide flange steel beams meet at a seismic expansion joint using a continuous plate with a polytetrafluoroethylene surface sliding bearing pad. A bridge upturned wide flange beam connects via an erection bolt as required and a three-eighths by four-inch by six-foot plate welded with one-quarter-inch fillet welds featuring three-inch minimum returns top and bottom on two sides. A deck edge angle connects to the coped flange of the wide flange beam as referenced on plan.
4" 4" BRIDGE UPTURNED WF BEAM REF. PLAN PL 3/8x4x'0-6" 1/4 4 3" MIN. RETURN TOP AND BOTTOM ERECTION BOLT AS REQ'D. DECK EDGE ANGLE REF. 14/S611 COPE FLANGE AS REQ'D. (2) WF BEAMS REF. PLAN CONT. PLATE w/ PTFE SURFACE SLIDING BEARING PAD TYP. WF CANTILEVER STUB REF. PLAN 1/4 1/4 (2) SIDES
