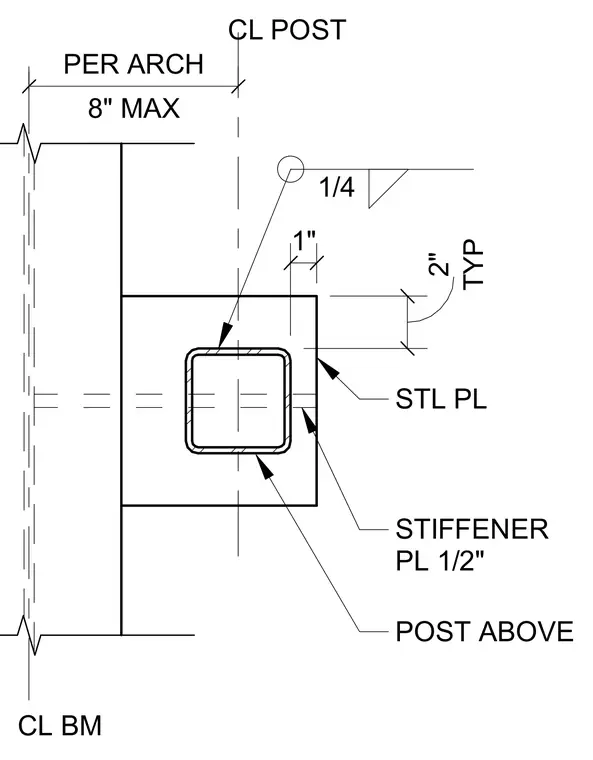

A hollow structural section steel post above centers on a steel plate welded to a supporting beam centerline. A one-half inch thick stiffener plate is welded to the assembly with a quarter-inch fillet weld typically. Dimensions indicate a one inch offset from the plate edge and a two inch typical spacing, positioned within eight inches maximum per architectural requirements.
