Structural · S-Q9PEP

Concrete Column Foundation on Pile Cap

Materials

Concrete

Elements

Columns Floors / Slabs Foundations / Footings Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

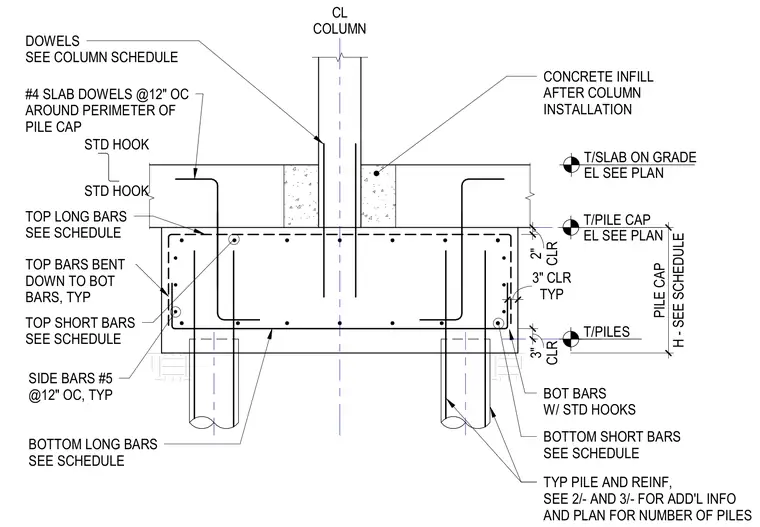

A concrete column centers on a reinforced concrete pile cap supported by piles, with concrete infill placed around the column base after installation. The pile cap features top and bottom long and short reinforcing bars, side bars of number 5 at twelve inches on center typically, and bottom bars terminating with standard hooks. Top bars bend down to meet the bottom bars at the edges, maintaining three inches of clear cover typically at sides and bottom, and two inches at the top. Number 4 slab dowels at twelve inches on center ring the perimeter of the pile cap with standard hooks extending into the surrounding slab on grade.
