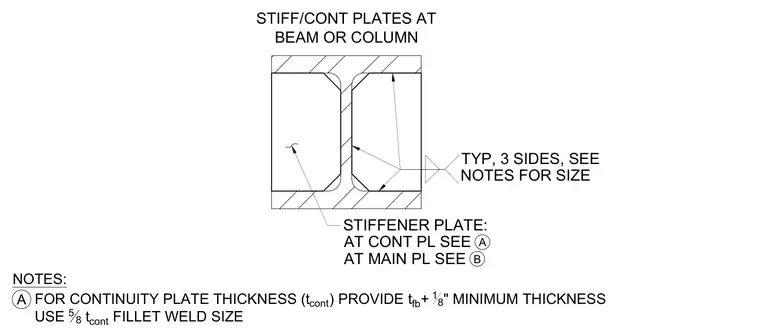

Stiffener plates and continuity plates are welded to a structural steel beam or column flange and web assembly. The continuity plate thickness is sized per the flange thickness plus one-eighth inch minimum, with fillet weld sizes specified as five-eighths of the continuity plate thickness. Welds are applied to three sides of the plates per the project notes.
FOR CONTINUITY PLATE THICKNESS (t cont ) PROVIDE t fb + 18 " MINIMUM THICKNESS TYP, 3 SIDES, SEE STIFFENER PLATE: A AT CONT PL SEE AT MAIN PL SEE A B NOTES FOR SIZE NOTES: USE 5 8 t cont FILLET WELD SIZE STIFF/CONT PLATES AT BEAM OR COLUMN
