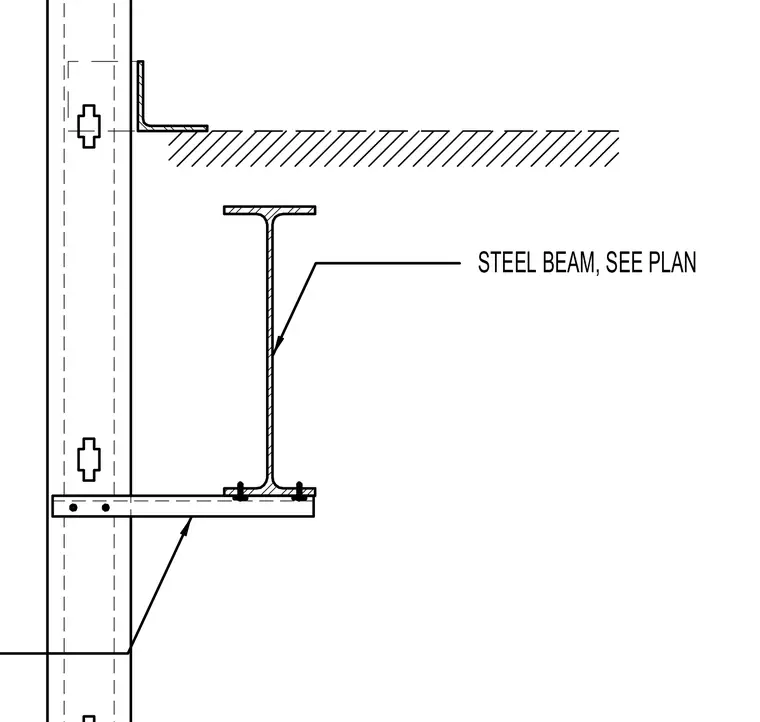

Cold-formed metal stud framing aligns against a structural steel beam, with the steel beam sized per plan. An angle bracket interfaces with the floor deck assembly above. The lower flange of the steel beam rests on a horizontal support arm connected back to the metal stud wall framing with mechanical fasteners.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
