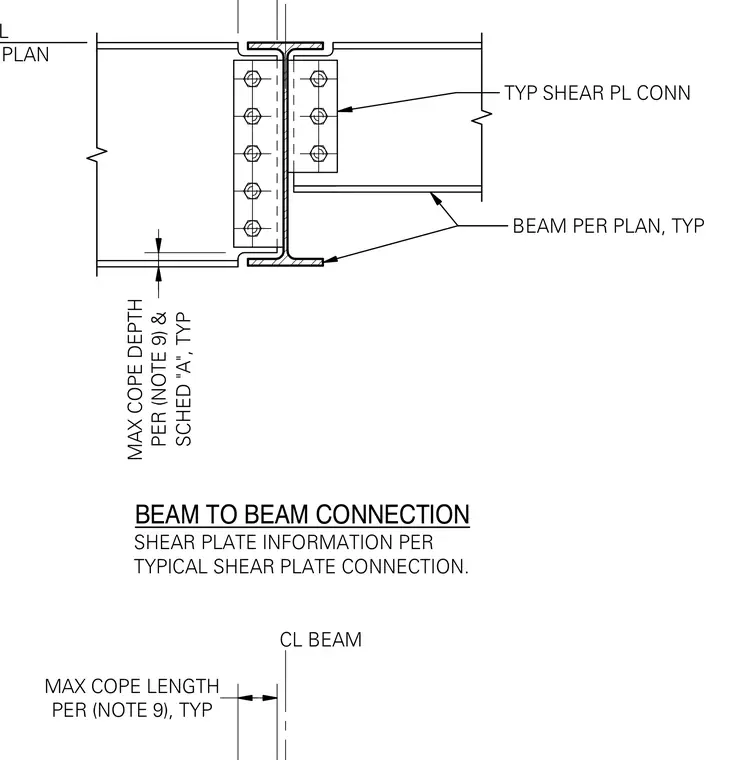

Framing connection utilizing a typical shear plate welded to the supporting structural steel beam web and bolted to the supported beam web. The supported beam top flange features a maximum cope depth and cope length sized per project notes and schedule. Beam sizes and shear plate connections are sized per plan.
TYP SHEAR PL CONN BEAM PER PLAN, TYP BEAM TO BEAM CONNECTION SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. SCHED "A", TYP MAX COPE DEPTH PER (NOTE 9) & T/STL PER PLAN PER (NOTE 9), TYP MAX COPE LENGTH CL BEAM
