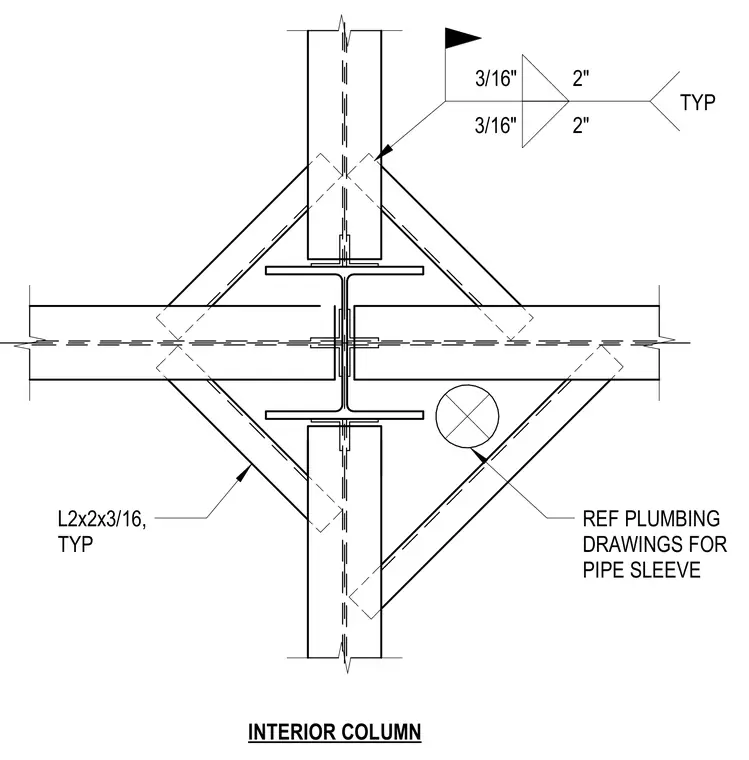

An interior column is braced by typical L2x2x3/16 structural steel angles welded in a diagonal configuration with three-sixteenth-inch fillet welds spaced at two inches on center. The assembly coordinates with plumbing drawings for pipe sleeve locations relative to the structural framing. All connection components are typical throughout the framing condition.
INTERIOR COLUMN 3/16" 2" 3/16" 2" TYP REF PLUMBING DRAWINGS FOR PIPE SLEEVE L2x2x3/16, TYP
