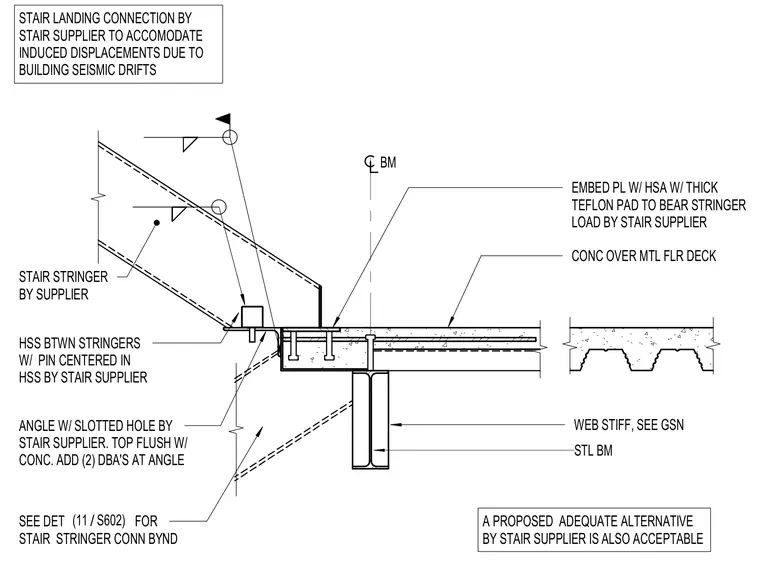

A stair landing is designed to accommodate induced displacements caused by building seismic drifts. A steel beam supports a concrete fill over metal floor deck with a web stiffener welded to the web. An embed plate with HSA anchors and a thick Teflon pad bears the stair stringer load. An angle with slotted holes, flush with the top of concrete, receives two additional DBA anchors. A hollow structural section spans between stair strings with a center pin, with components provided by the stair supplier.
ANGLE W/ SLOTTED HOLE BY STAIR SUPPLIER. TOP FLUSH W/ CONC. ADD (2) DBA'S AT ANGLE STL BM BM CONC OVER MTL FLR DECK EMBED PL W/ HSA W/ THICK TEFLON PAD TO BEAR STRINGER LOAD BY STAIR SUPPLIER HSS BTWN STRINGERS W/ PIN CENTERED IN HSS BY STAIR SUPPLIER STAIR STRINGER BY SUPPLIER STAIR LANDING CONNECTION BY STAIR SUPPLIER TO ACCOMODATE INDUCED DISPLACEMENTS DUE TO BUILDING SEISMIC DRIFTS WEB STIFF, SEE GSN SEE DET FOR STAIR STRINGER CONN BYND A PROPOSED ADEQUATE ALTERNATIVE BY STAIR SUPPLIER IS ALSO ACCEPTABLE / (11 S602)
