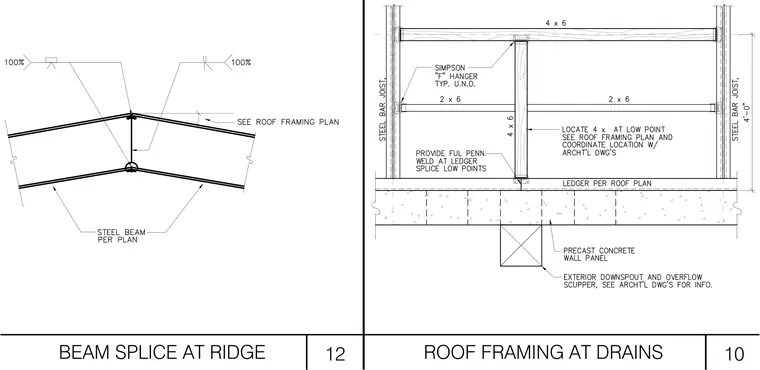

Two structural details featuring a steel beam splice at a roof ridge and roof framing at a drain location. The left detail has steel beams meeting at a ridge with a beam splice, noting 100 percent weld requirements and steel beams sized per plan. The right detail has roof framing supported by a precast concrete wall panel, featuring 4x6 and 2x6 wood framing members connected with Simpson F hangers typically unless noted otherwise. A 4x framing member is located at the low point coordinated with architectural drawings, and a ledger is provided per the roof plan above the precast concrete wall panel.
