An 8-inch concrete masonry unit wall is fully supported at its base and terminates near a structural column or wall with a specified end gap filled with firestop or waterproofing material per architectural drawings. Vertical reinforcing bars are provided per the concrete masonry unit non-load-bearing wall reinforcing schedule. Horizontal reinforcing includes hooks matching the size and spacing of the horizontal reinforcing schedule over a length of Lcmu.

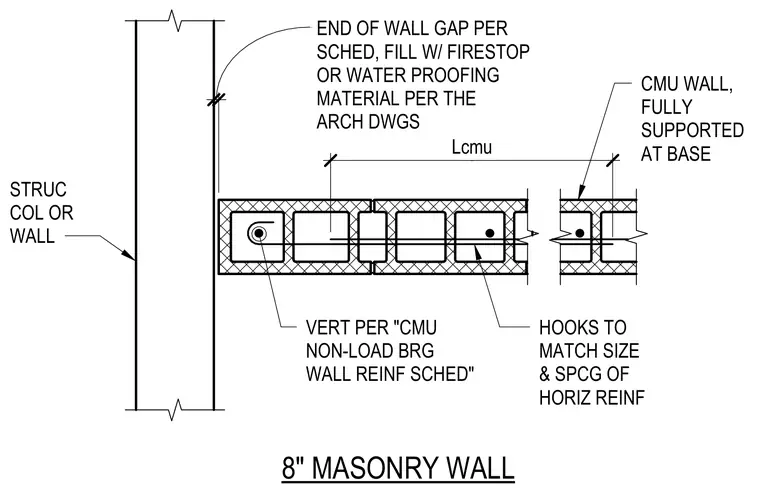

1/2" CMU WALL, FULLY SUPPORTED AT BASE STRUC COL OR WALL VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" 8" MASONRY WALL 29" Lcmu HOOKS TO MATCH SIZE & SPCG OF HORIZ REINF END OF WALL GAP PER SCHED, FILL W/ FIRESTOP OR WATER PROOFING MATERIAL PER THE ARCH DWGS
