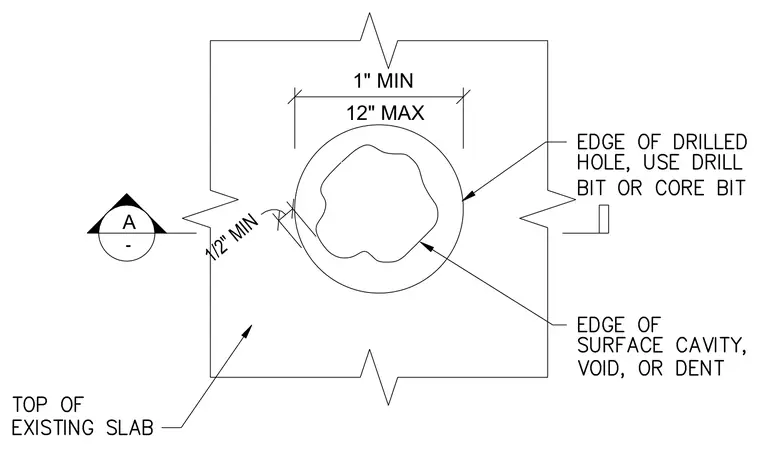

A drilled hole in an existing concrete slab maintains a minimum edge clearance of 1/2 inch from any surface cavity, void, or dent. The drilled hole is formed using a drill bit or core bit. Dimensional limits specify a minimum dimension of 1 inch and a maximum dimension of 12 inches across the assembly.
