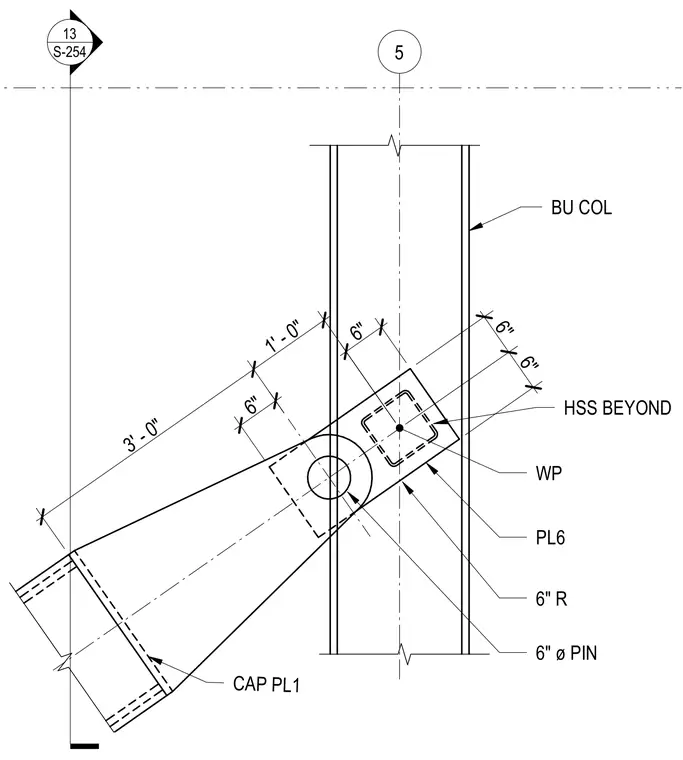

A built-up column receives a pinned diagonal brace connection aligned at a working point. The brace assembly incorporates a cap plate, a six-inch radius plate, and a six-inch diameter pin connecting to a hollow structural section shown beyond. Dimensional lines establish set-backs from the working point along the brace axis.
5 13 S-254 3' - 0" 1' - 0" 6" 6" WP CAP PL1 BU COL 6" 6" HSS BEYOND 6" ø PIN 6" R PL6
