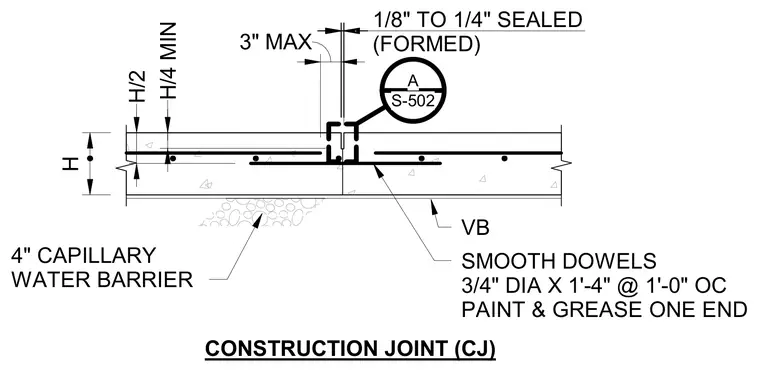

A concrete slab construction joint reinforced with smooth steel dowels measuring three-quarters of an inch in diameter by one foot four inches long spaced at one foot on center, with one end painted and greased to allow lateral movement. A four-inch capillary water barrier is positioned beneath the slab along with a vapor barrier. The joint incorporates a formed profile sealed to a width of one-eighth to one-quarter of an inch, maintaining minimum clearances relative to the overall slab thickness H.
H H/4 MIN 3" MAX 1/4" CONSTRUCTION JOINT (CJ) SMOOTH DOWELS 3/4" DIA X 1'-4" @ 1'-0" OC PAINT & GREASE ONE END 4" CAPILLARY WATER BARRIER S-502 A VB H/2 1/8" TO 1/4" SEALED (FORMED)
