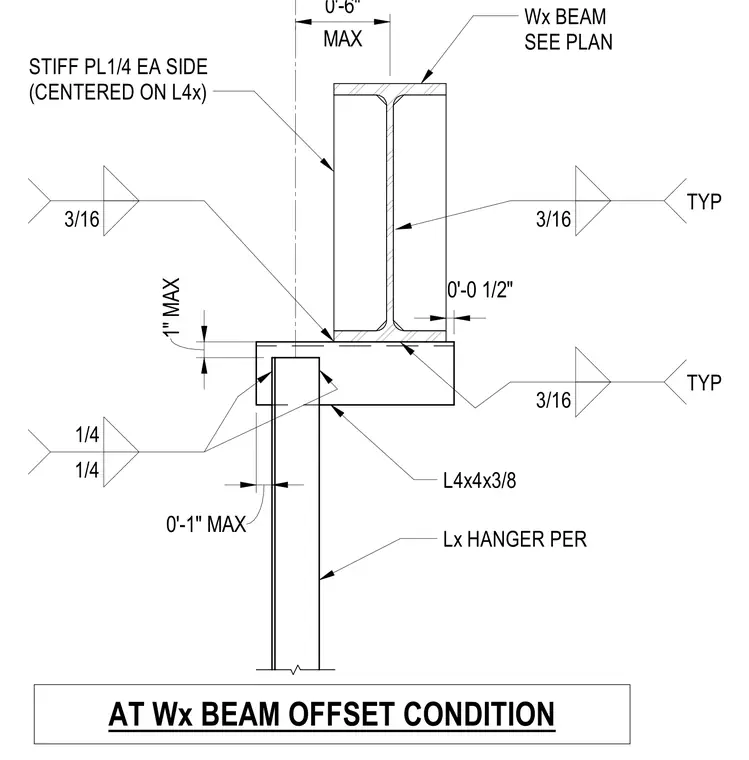

An angle hanger supports a wide-flange beam offset condition using an L4x4x3/8 structural steel angle. One-quarter-inch fillet welds secure the angle hanger to the supporting elements with a maximum one-inch vertical clearance and up to one-inch horizontal offset. Quarter-inch thick stiffener plates are centered on each side of the angle and attached with three-sixteenth-inch typical fillet welds. The supported wide-flange beam is sized per plan and set with a zero-foot zero-and-a-half-inch offset.
L4x4x3/8 1/4 1/4 Lx HANGER PER 1" MAX Wx BEAM SEE PLAN 3/16 TYP MAX 0'-6" 0'-0 1/2" 3/16 TYP 3/16 0'-1" MAX STIFF PL1/4 EA SIDE (CENTERED ON L4x) AT Wx BEAM OFFSET CONDITION
