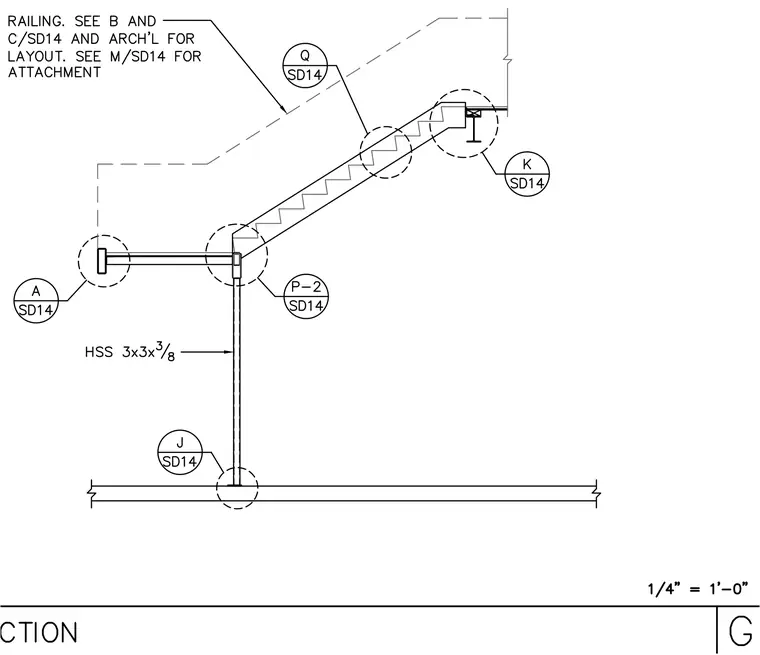

A hollow structural section column of size HSS 3x3x3/8 supports a steel stair run that connects to upper framing. The assembly features multiple detail callout bubbles referencing sheet SD14 for specific connection types at the base plate, mid-landing, stair treads, and handrail attachments. Railing layout and attachment are coordinated per architectural, structural, and mechanical drawings.
