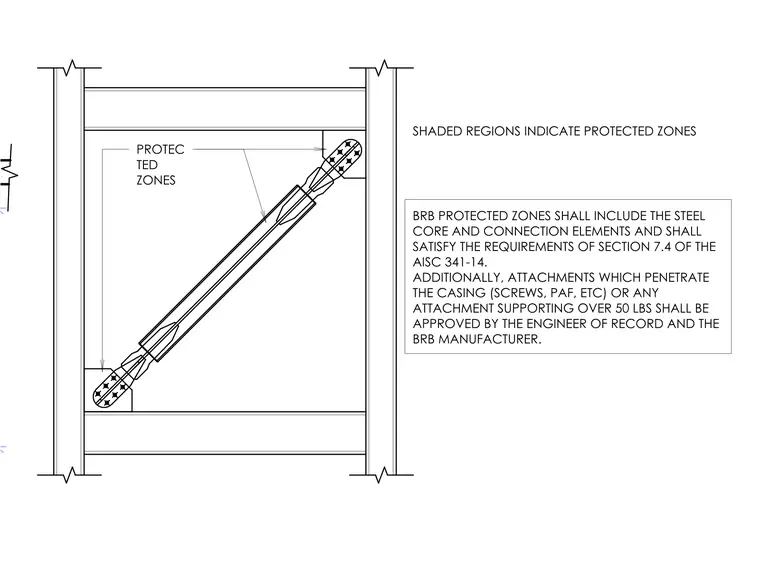

The shaded regions of the buckling restrained brace assembly define the protected zones, which encompass the steel core and connection elements. These zones must comply with the requirements of Section 7.4 of AISC 341-14. Any attachments that penetrate the casing, such as screws or powder-actuated fasteners, or any attachment supporting over 50 pounds, require approval from the engineer of record and the buckling restrained brace manufacturer.
Text on the drawing
SHADED REGIONS INDICATE PROTECTED ZONES BRB PROTECTED ZONES SHALL INCLUDE THE STEEL CORE AND CONNECTION ELEMENTS AND SHALL SATISFY THE REQUIREMENTS OF SECTION 7.4 OF THE AISC 341-14. ADDITIONALLY, ATTACHMENTS WHICH PENETRATE THE CASING (SCREWS, PAF, ETC) OR ANY ATTACHMENT SUPPORTING OVER 50 LBS SHALL BE APPROVED BY THE ENGINEER OF RECORD AND THE BRB MANUFACTURER. PROTEC TED ZONES
