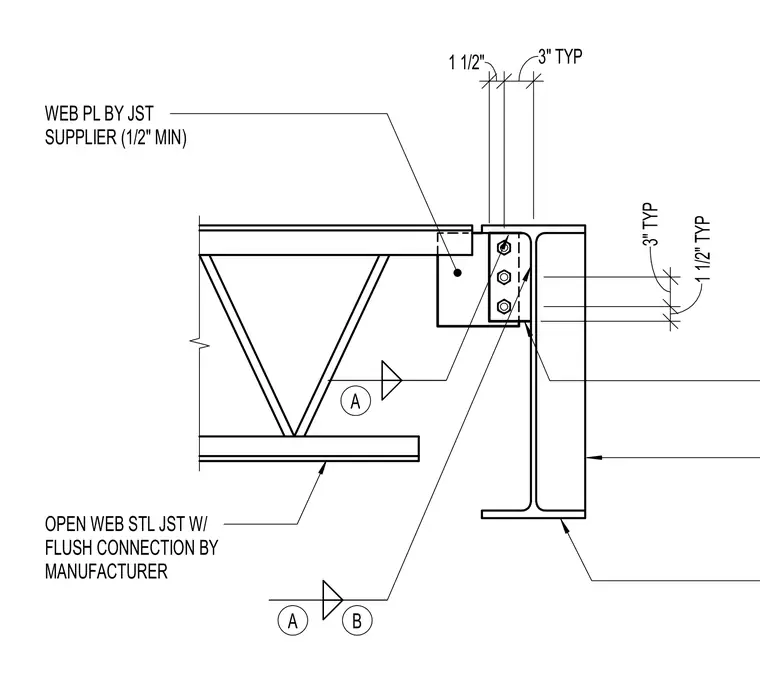

An open web steel joist connects flush to a supporting structural steel beam using a web plate provided by the joist supplier with a minimum thickness of one-half inch. The connection features bolted or welded attachments with typical spacing dimensions of one and one-half inches and three inches. The joist relies on manufacturer-specified flush framing configurations to align the top chords of the members.
OPEN WEB STL JST W/ FLUSH CONNECTION BY MANUFACTURER WEB PL BY JST SUPPLIER (1/2" MIN) 1 1/2" 3" TYP 1 1/2" TYP 3" TYP A B A
