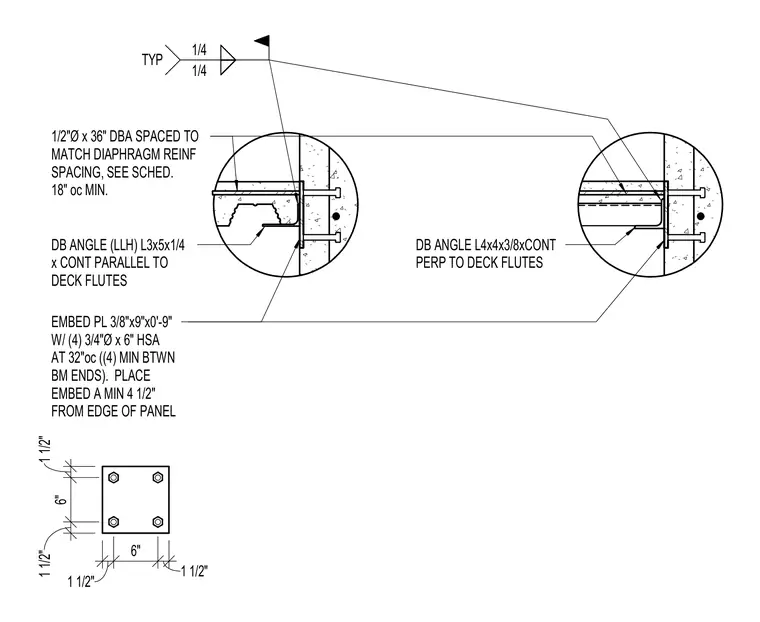

An embed plate measuring three-eighths by nine by nine inches is secured with four three-quarter-inch diameter by six-inch headed stud anchors at thirty-two inches on center, positioned a minimum of four and one-half inches from the panel edge with a minimum of four anchors between beam ends. For conditions parallel to deck flutes, a continuous three-by-five by one-quarter-inch angle is provided. For conditions perpendicular to deck flutes, a continuous four-by-four by three-eighths-inch angle is utilized. One-half-inch diameter by thirty-six-inch deformed bar anchors are spaced to match diaphragm reinforcement spacing at an 18-inch on-center minimum.
1 1/2" 6" 1 1/2" 1 1/2" 6" 1 1/2" EMBED PL 3/8"x9"x0'-9" W/ (4) 3/4"Ø x 6" HSA AT 32"oc ((4) MIN BTWN BM ENDS). PLACE EMBED A MIN 4 1/2" FROM EDGE OF PANEL DB ANGLE (LLH) L3x5x1/4 x CONT PARALLEL TO DECK FLUTES 1/4 1/4 TYP 1/2"Ø x 36" DBA SPACED TO MATCH DIAPHRAGM REINF SPACING, SEE SCHED. 18" oc MIN. DB ANGLE L4x4x3/8xCONT PERP TO DECK FLUTES
