A canopy connection utilizes hollow structural section (HSS) 20x4x1/4 members and continuous steel plates measuring 1/4 inch by 6 inches. The steel plates are rotated 45 degrees and spaced equally with a total of six units as specified by architectural coordination. Fillet welds of 1/4 inch are specified typically throughout the connection assembly.

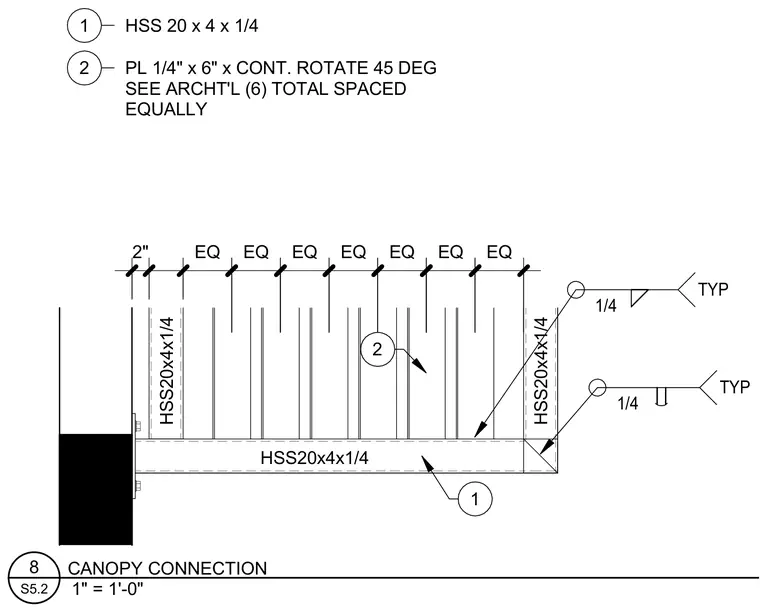

1 HSS 20 x 4 x 1/4 2 1 2 PL 1/4" x 6" x CONT. ROTATE 45 DEG SEE ARCHT'L (6) TOTAL SPACED EQUALLY 1/4 TYP 1/4 TYP HSS20x4x1/4 HSS20x4x1/4 HSS20x4x1/4 2" EQ EQ EQ EQ EQ EQ EQ 1" = 1'-0" S5.2 8 CANOPY CONNECTION
