Structural · S-Q6WM8

Steel Stud Wall Deflection Track at Steel Beam and Concrete Deck

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Beams Walls Windows Facades / Cladding Decks Arches Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection

About this detail

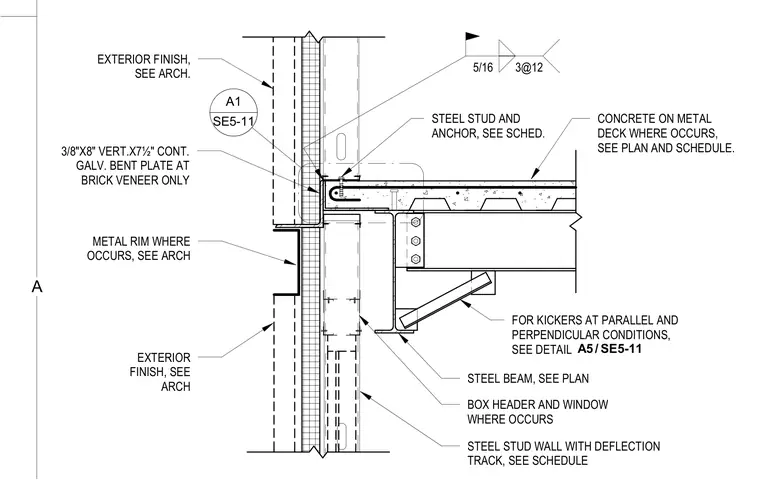

A structural steel beam supports a concrete on metal deck assembly with a steel stud wall bearing below via a deflection track. A continuous galvanized bent plate measuring 3/8 inch by 8 inches is installed vertically at brick veneer conditions. A kicker brace connects to the steel beam and framing below, sized per plan. Exterior finish, box headers, and metal rim are installed as scheduled and detailed per architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
