About this detail

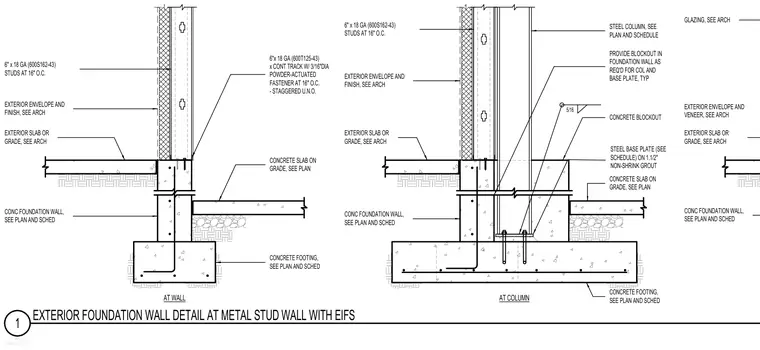

An exterior foundation wall and concrete footing support a concrete slab-on-grade and exterior wall assemblies. At the wall condition, a continuous metal track is anchored to the foundation wall with three-sixteenth-inch diameter powder-actuated fasteners spaced at sixteen inches on center, carrying six-inch by eighteen gauge cold-formed steel studs at sixteen inches on center. At the column condition, a structural steel column bears on a steel base plate set over one and one-half inches of non-shrink grout within a concrete blockout in the foundation wall. The foundation wall and concrete footing are sized per structural plans and schedules, with exterior envelope, finishes, and glazing coordinated per architectural drawings.
