Structural · S-Q6JCC

Hss To Hss Connections

Materials

Steel

Elements

Walls Connections / Plates

Connections

HSS Connection

About this detail

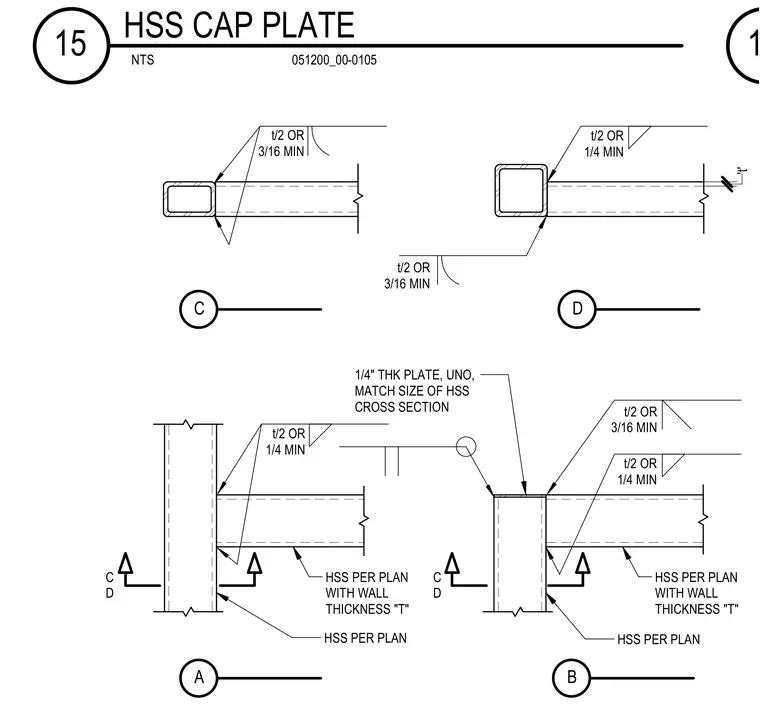

Hollow structural section members connect using a one-quarter-inch thick plate matching the cross-section of the HSS member, welded with fillet welds sized per wall thickness t over two or three-sixteenths minimum up to one-quarter minimum. The assemblies detail multiple connection configurations labeled A, B, C, and D with indicated view directions and member sizes sized per plan with wall thickness T.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
