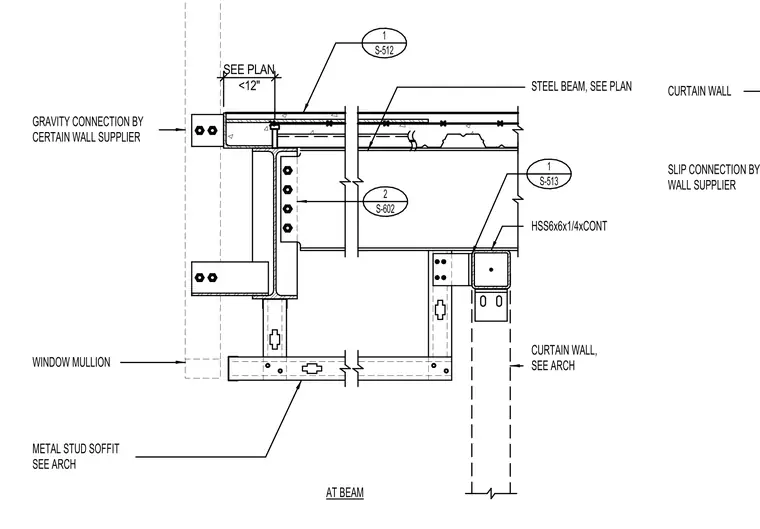

A structural interface connects a curtain wall system to the primary steel framing at a floor line. The assembly includes a continuous 6x6x1/4-inch hollow structural section wind girt supported below a steel beam sized per plan. A gravity connection and a slip connection provided by the curtain wall supplier tie the facade back to the structure. Window mullions and metal stud soffit framing coordinate with the architectural layout at the perimeter.
1 S-512 2 S-602 1 S-513 SEE PLAN <12" GRAVITY CONNECTION BY CERTAIN WALL SUPPLIER WINDOW MULLION STEEL BEAM, SEE PLAN METAL STUD SOFFIT CURTAIN WALL, SEE ARCH HSS6x6x1/4xCONT SEE ARCH AT BEAM SLIP CONNECTION BY CURTAIN WALL SUPPLIER CURTAIN WALL
