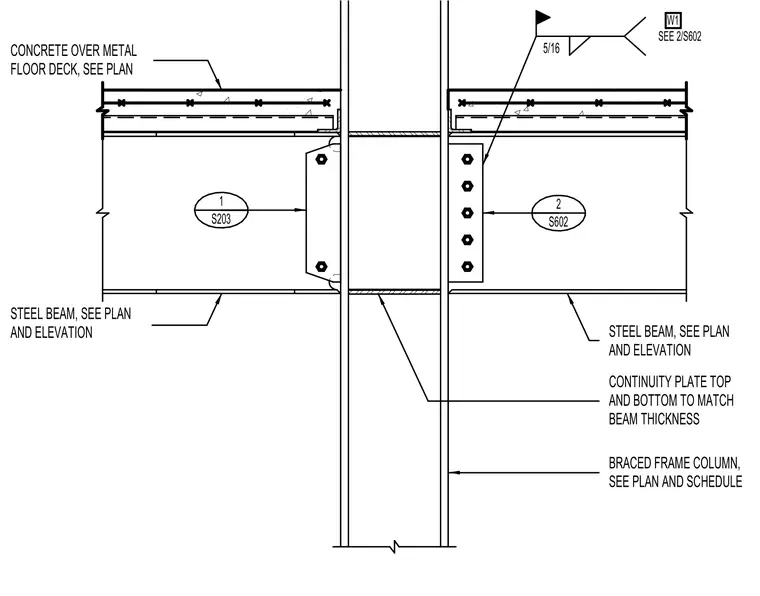

Steel beams frame into a vertical braced frame column with a bolted shear tab and top and bottom continuity plates matched to the beam thickness. A five-sixteenth inch fillet weld secures the beam web to the connection plate per weld specification W1. A concrete slab on metal floor deck bears over the framing, sized per structural plans.
2 S602 1 S203 CONCRETE OVER METAL FLOOR DECK, SEE PLAN STEEL BEAM, SEE PLAN CONTINUITY PLATE TOP AND BOTTOM TO MATCH BEAM THICKNESS SEE 2/S602 5/16 W1 AND ELEVATION STEEL BEAM, SEE PLAN AND ELEVATION BRACED FRAME COLUMN, SEE PLAN AND SCHEDULE
