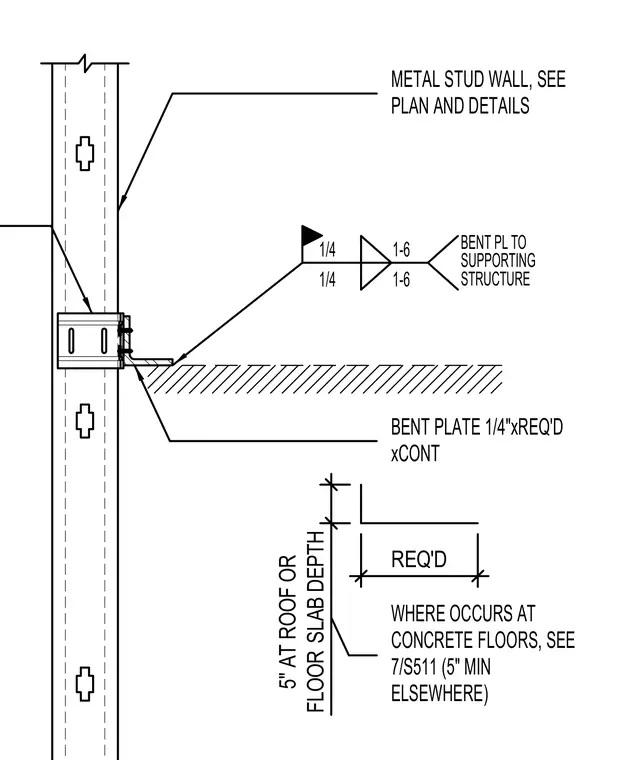

A continuous one-quarter-inch bent plate connects the cold-formed metal stud wall to the supporting structure with field welds. The assembly accommodates varying slab depths, maintaining a five-inch minimum thickness at concrete floors or as required at roofs. Connection details to the supporting structure and framing follow project plans.
WHERE OCCURS AT CONCRETE FLOORS, SEE 7/S511 (5" MIN ELSEWHERE) BENT PLATE 1/4"xREQ'D xCONT 1/4 SUPPORTING 1/4 1-6 1-6 BENT PL TO STRUCTURE METAL STUD WALL, SEE PLAN AND DETAILS 5" AT ROOF OR FLOOR SLAB DEPTH REQ'D
