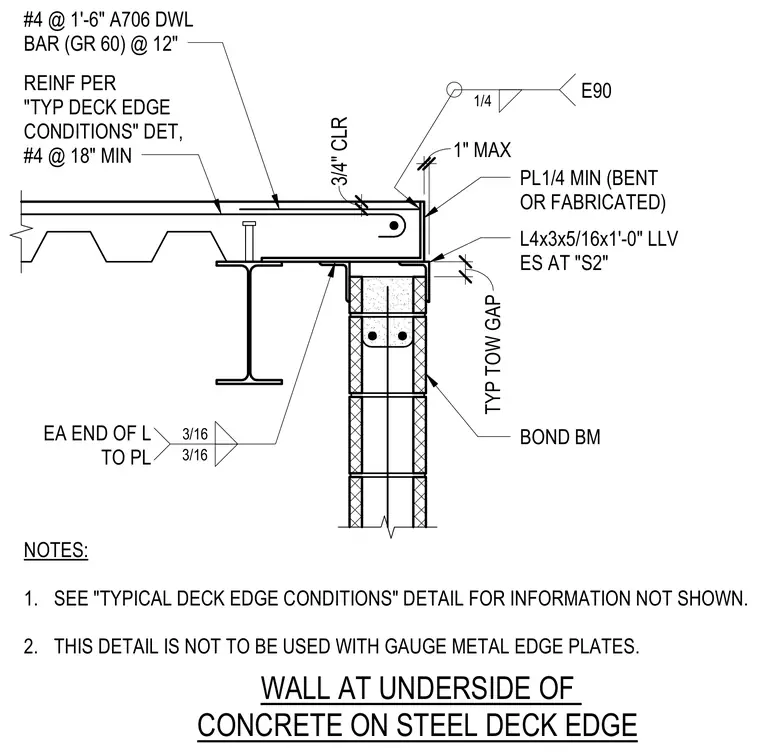

A reinforced concrete slab cast over a steel deck bears on a supporting steel beam positioned above a concrete masonry unit bond beam wall. An edge angle measuring 4x3x5/16 inches by one foot long is welded to the plate with three-sixteenth-inch fillet welds at each end and an E90 one-quarter-inch weld at the top edge. A minimum one-quarter-inch bent or fabricated plate forms the slab edge with a one-inch maximum dimension and three-quarters-inch clearance. Reinforcing includes number four dowel bars at twelve inches spacing with grade sixty steel, along with additional number four bars at eighteen inches minimum. A typical top of wall gap is maintained between the steel beam flange and the bond beam wall below, and the assembly excludes gauge metal edge plates per drawing notes.
BOND BM WALL AT UNDERSIDE OF CONCRETE ON STEEL DECK EDGE TYP TOW GAP 1 1/2" 1/2" 1" MAX NOTES: 1. SEE "TYPICAL DECK EDGE CONDITIONS" DETAIL FOR INFORMATION NOT SHOWN. 2. THIS DETAIL IS NOT TO BE USED WITH GAUGE METAL EDGE PLATES. REINF PER "TYP DECK EDGE CONDITIONS" DET, #4 @ 18" MIN #4 @ 1'-6" A706 DWL BAR (GR 60) @ 12" 3/4" CLR PL1/4 MIN (BENT OR FABRICATED) E90 1/4 EA END OF L TO PL 3/16 3/16 L4x3x5/16x1'-0" LLV ES AT "S2"
